The CW Iambic Memory Keyer is a simple to use morse keyer that can key almost every CW transmitter or transceiver.

Features include:

• Has four memories (Long CQ, Short CQ, QRZ? and CQ test)

• Speed control controlled by front panel button (dit for faster, dah for slower)

• Positive keying output will key transmitters that require a very low resistance to ground

• Negative keying output will key classic valve transmitters using grid block keying

• PTT keying output

• Receiver mute output

• Low level audio output to feed a practice amplifier or modulate a FM transmitter for morse practice

• Built in sidetone sounder for transmitters without a sidetone oscillator

• Mounted in a rugged diecast box with mounting flange and earth stud to connect to station earth

• Internal CR-2032 battery runs for 3 years or more with normal use

• Meets EU specifications for EMC, RoHS and WEEE

The CW Iambic Memory Keyer is now available built and tested at a price of £49.95 + £ 7.00 international postage.

When ordering please let us know what callsign you want programming into the keyer.

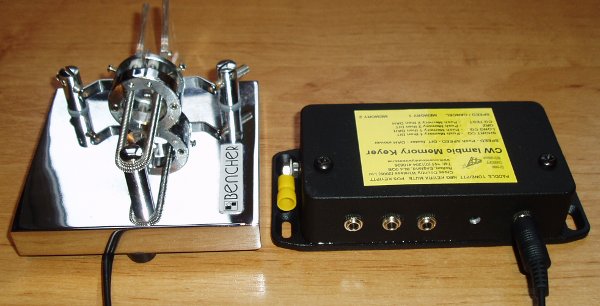

Please note that the Bencher paddle is not included, it's there to show the size of the keyer!

A PDF file containing details of connections to the keyer can be downloaded here. You can order by Paypal in your local currency...

CW Iambic Memory Keyer

Contact Chris Moulding, G4HYG via info@crosscountrywireless.net for more details.

It's not the first time we've made keyers.
Between 1981 and 1984 trading as Chris Moulding Radio Services we produced the CMOS VMOS Iambic Keyer.
We sold about 1000 keyers by mail order and at radio rallies in the north of England.
We still get enquiries for details of the original keyer and it's always good to hear how many are still in regular service 29 years on.
A PDF file containing details of the CMOS VMOS Iambic Keyer can be downloaded here.
